Switch Pro SP9100

$590.00

The Switch-Pros eight tactile switches, in a two-row configuration that is user-programmable, with the same style of the previous Switch-Pros systems.

  • Dimming for lighting outputs
  • External trigger to activate up to 2 outputs
  • Battery Voltage display on app screen
  • Four 35A circuits and four 18A circuits
  • Eight user-programmable switches
SKU: SF66477-1 Category:

-

All systems include:

  • 100 User-selectable switch legends (not shown)
  • Eight user-programmable switches
  • Four 35A circuits and four 20A circuits
  • Waterproof, Solid State 125A Power Module
  • RGB Backlighting provides unlimited color options, using Color Picker on App
  • Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
  • Switches can be programmed for:
    • On/Off or Momentary
    • Ignition or Battery Input
    • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
    • Memory Function
    • Master Mode, with ability to turn multiple outputs On AND Off with one touch
    • Automatic Power-Up upon vehicle start up
  • Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
  • Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
  • Sleep Mode for minimal power consumption
  • Color Coded circuit wires
  • LED Input Status Indicators for easy troubleshooting
  • Time Delay Off function available for all circuits
  • Splash proof switch panel with Polycarbonate overlay faceplate
  • Program and control the system from switch panel pad or smart phone
  • Bluetooth interface with FREE Apple or Android App
  • Battery Voltage Readout on App screen
  • No Fuses or Bulky Relay box
  • Built-In Bluetooth Module

Switch Panel Specs:

  • RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
  • Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
  • Orange LED switch indicators
  • 100 User Selectable Legends

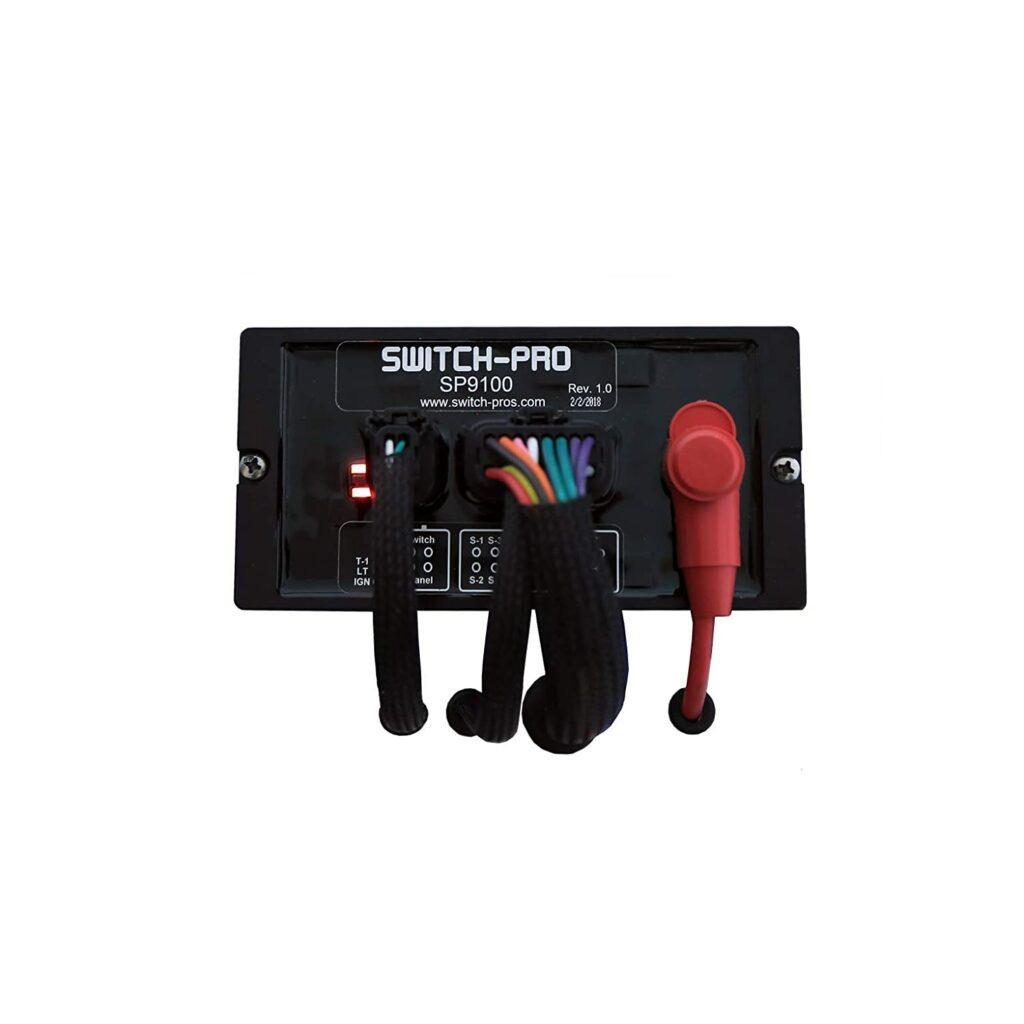

Power Module Specs:

  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • 125A maximum rating
  • Waterproof and Solid State
  • 6”L x 3”W x .5”H (excluding connectors)
  • LED Input Status Indicators for easy troubleshooting
  • Underhood rated 125° to -40°C

Kit Also Includes:

  • 11’ of Communication Cable between Switch Panel and Power Module
  • Color Coded Output wires
  • Wire harness with Waterproof, sealed automotive grade connectors
  • Power Cable with 125A inline fuse
